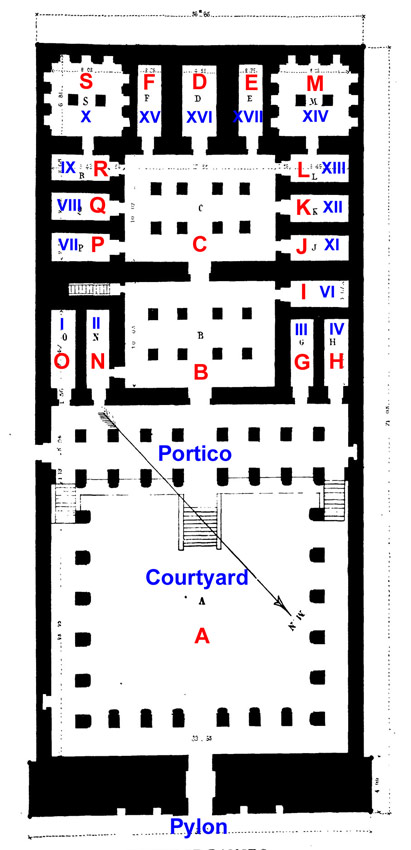

I duplicate the map given by Mariette in his book on Abydos (see the page Links). The temple is a rectangle of 57 on 71 meters. The plan differed of the one of the temple of Sety. It contains numerous chapels dedicated to different gods and doesn't have the worship "logic" of his father's temple.

In red, the nomenclature of Mariette and in blue, the numbering of Porter and Moss.
